Product Details: |
Characteristics:
1. Crushing strength: 200Mpa
2. Coarse crushing, secondary crushing and fine crushing
3. For both underground and open pit mining
4. Can be fixed, semi-mobile and mobile type
5. Low-speed and high-torque transmission
Scope of application
Widely used in underground mining and open pit for primary, secondary and fine crushing. It could be fixed, semi-mobile and mobile type. Maximum crushing strength is up to 200MPa.
Work principle

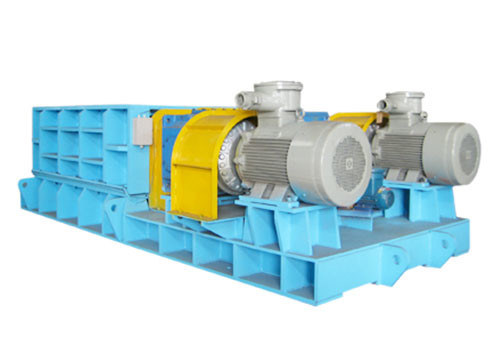

FPGB grading crusher adopts low speed and high torque transmission system. It is different from traditional double tooth-roller crusher which breaks the rock by impacting and crushing. This machine crushes rocks by cutting and stretching.
Parameters
Coarse crushing
Specification | Input size (mm) | Discharge size(mm) | Capacity (t/h) | Motor power (kW) |
FPGB50-A1 | ≤300 | ≤80-120 | 80-150 | 2x18.5/37 |
FPGB50-A2 | 100-300 | 2x30/55 | ||
FPGB50-A3 | 250-600 | 2x37/90 | ||
FPGB68-A1 | ≤600 | ≤100-250 | 400-600 | 2x55/110 |
FPGB68-A2 | 400-1000 | 2x75/160 | ||
FPGB80-A1 | ≤800 | ≤200-300 | 750-1500 | (100-160)x2 |
FPGB80-A2 | 1200-2500 | (132-160)x2 | ||
FPGB80-A3 | 2000-3500 | (185-220)x2 | ||
FPGB100-A1 | ≤1000 | ≤300 | 800-1000 | (132-160)x2 |
FPGB100-A2 | 1200-2000 | (160-180)x2 | ||
FPGB100-A3 | 2000-3000 | (185-250)x2 | ||
FPGB115-A1 | ≤1200 | ≤300 | 1000-2000 | (160-180)x2 |
FPGB115-A2 | 2000-3000 | (185x250)x2 | ||
FPGB115-A3 | 3000-5000 | 250x2 |
Secondary crushing
Specification | Input size (mm) | Discharge size(mm) | Capacity (t/h) | Motor power (kW) |
FPGB50-B1 | ≤300 | ≤50-80 | 100-180 | 45-55 |
FPGB50-B2 | 180-320 | 75-110 | ||
FPGB50-B3 | 260-500 | 110-160 | ||
FPGB63-B1 | ≤300 | ≤50-80 | 250-400 | (75-90)X2 |
FPGB63-B2 | 400-800 | (110-160)X2 | ||
FPGB63-B3 | 800-1200 | (160-220)X2 | ||
FPGB80-B1 | ≤300 | ≤50-80 | 350-800 | (110-132)X2 |
FPGB80-B2 | 550-1500 | (132-200)X2 | ||
FPGB80-B3 | 900-2000 | (160-250)X2 | ||
FPGB100-B1 | 2000-4500 |
(185-250)X2 |
Fine crushing
Specification | Input size (mm) | Discharge size ((mm) | Capacity (t/h) | Motor power (kW) |
FPGB50-C1 | ≤60/≤200 | ≤10/30-50 | 25-40/40-80 | 11X2 |
FPGB50-C2 | 40-60/60-100 | 15X2 | ||
FPGB50-C3 | 60-80/80-120 | 18.5X2 | ||
FPGB65-C1 | ≤80/≤200 | ≤10/30-50 | 30-50/50-80 | 15X2 |
FPGB65-C2 | 50-80/80-120 | 18.5X2 | ||
FPGB65-C3 | 80-120/120-150 | 22X2 | ||
FPGB75-C1 | ≤300 | ≤30-50 | 80-120 | 22X2 |
FPGB75-C2 | 120-180 | 30X2 | ||
FPGB75-C3 | 150-200 | 45X2 | ||
FPGB100-C1 | ≤450 | ≤30-50 | 180-260 | 37X2 |
FPGB100-C2 | 240-360 | 45X2 | ||
FPGB100-C3 | 350-500 | 55X2 |
