2PQJ coke cutter

China 2PQJ coke cutter supplier

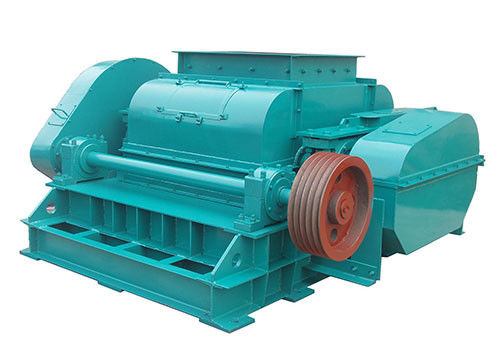

Large Image :  2PQJ coke cutter

Product Details:

Contact Now
Detailed Product Description

2PQJ coke cutter is mainly used for the processing of coke size in steel plant and coking plant. The processed coke lump features uniform particle size, it will increase air permeability and enhance the coefficient of blast furnace to save coke.



Unique structure features

1. Tight correspondence between long and short blade-shaped teeth, different rotary speed of tooth rollers, effectively reduce overcrushing

2. Gear linkage, stable operation, low noise level, small vibration, no gear broken

3. Relative speed between the two rollers for their different speeds, unique transmission system guarantees the best joggle condition all the time

4. Easy stepless adjustment of particle size without power-off according to the wear condition of teeth and coke particle size

5. Wear resistant blade-shaped crushing plate, impact resistance

6. Special design of gear box adopts thin oil lubrication to avoid damage by coke dust

7. Easy maintenance, long service life up to 30 years



Advantages

1. Uniform particle size: coke lump from 20-80mm accounts for more than 85%, more than 10% less coke powder production than that of double-tooth-roller , higher production yield

2. Enhance coke strength: no tiny crack

3. Advanced structure, easy operation



Parameters

Specification

Input size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Motor power
(kW)
Weight
(kg)
Dimension
(mm)
2PQJ-45 <200 20-80 10-20 11 3800 2570*1640*820
2PQJ-60 <250 20-40 15 5700 3226*1980*1110
2PQJ-80I <350 50-80 22 8600 3842*2265*1401
2PQJ-80II 80-100 30 11000 3842*2565*1401
2PQJ-10I 100-120 45 15800 4819*2887*1450
2PQJ-10II <450 120-150 55 18500 4819*2862*1450
2PQJ-10III 150-200 75 24000 4819*3210*1450
2PQJ-12I 200-250 90 29000 3600*3250*1750
2PQJ-12II 250-300 110 33000 3600*3900*1750
2PQJ-12III 300-350 160 38000 3600*4500*1750
