Product Details: |

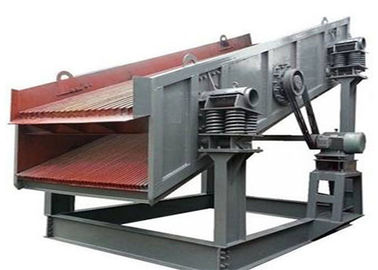

Vibrating screen
1. Round vibration locus
2. Adjustable amplitude
3. Small dimension
4. Easy installation
Features:
1. Widely used in electricity, metallurgy and mining industry
2. Little pegging and plugging
3. Simple structure and easy maintenance
4. Multi layers for various products
5. Can be sealed for screening to eliminate pollution
6. For both dry and wet screening, water and mud removal
Parameters
Specification | Screen deck | Feeding size mm |
Capacity t/h |
Motor power kw |
Dimension L×W×H mm |
|||
Layers | Angle (°) |
Effective area m2 |
Hole size mm |
|||||
2YK-1245 | 2 | 15-22.5 | 5.4 | 5-50 | ≤200 | 20-125 | 11 | 4872×2610×2520 |
3YK-1245 | 3 | 20 | 5.4 | 5-50 | ≤200 | 20-125 | 11 | 5155×2686×3745 |
YK-1535 | 1 | 15-22.5 | 5.25 | 5-50 | ≤200 | 20-125 | 11 | 4684×2971×2404 |
3YK-1535 | 3 | 20 | 5.25 | 5-50 | ≤400 | 20-125 | 15 | 4719×3106×3273 |
YK-1545 | 1 | 20 | 6.75 | 5-50 | ≤400 | 22-150 | 11 | 4805×2911×2076 |
2YK-1545 | 2 | 20 | 6.75 | 5-50 | ≤400 | 22-150 | 15 | 5155×3050×3220 |
3YK-1545 | 3 | 15-22.5 | 6.75 | 5-50 | ≤400 | 22-150 | 15 | 4904×2715×2854 |
YK1842 | 1 | 20 | 7.56 | 5-50 | ≤400 | 32-275 | 15 | 4476×3303×2550 |
2YK1842 | 2 | 18 | 7.56 | 5-50 | ≤400 | 32-275 | 15 | 4476×3303×2953 |
YK1848 | 1 | 20 | 8.64 | 5-80 | ≤400 | 32-275 | 15 | 5055×3300×2468 |
2YK1848 | 2 | 20 | 8.64 | 5-80 | ≤400 | 32-275 | 15 | 6140×2470×1380 |
3YK1848 | 3 | 20 | 8.64 | 5-80 | ≤400 | 32-275 | 18.5 | 6140×2470×1780 |
YK1854 | 1 | 20 | 9.72 | 5-80 | ≤400 | 32-312 | 18.5 | 5520×2810×2000 |
2YK1854 | 2 | 20 | 9.72 | 5-80 | ≤400 | 32-312 | 18.5 | 6500×2600×1300 |
3YK1854 | 3 | 15 | 9.72 | 5-80 | ≤400 | 32-312 | 22 | 6200×3326×3393 |
YK2148 | 1 | 20 | 10.08 | 5-80 | ≤400 | 32-360 | 18.5 | 668×2140×408 |
2YK2148 | 2 | 20 | 10.08 | 5-80 | ≤400 | 32-360 | 18.5 | 3140×2591×1363 |
3YK2148 | 3 | 20 | 10.08 | 5-80 | ≤400 | 32-360 | 22 | 4745×3424×3515 |
YK2154 | 1 | 20 | 11.34 | 5-100 | ≤400 | 37.5-405 | 18.5 | 5400×3547×2750 |
2YK2154 | 2 | 20 | 11.34 | 5-100 | ≤400 | 37.5-405 | 22 | 5500×3600×3600 |
3YK2154 | 3 | 20 | 11.34 | 5-100 | ≤400 | 37.5-405 | 22 | 5590×3600×3900 |
YK2160 | 1 | 20 | 12.6 | 5-100 | ≤400 | 66-720 | 22 | 6302×3730×2992 |
2YK2160 | 2 | 20 | 12.6 | 5-100 | ≤400 | 66-720 | 30 | 6374×3821×3707 |
3YK2160 | 3 | 20 | 12.6 | 5-100 | ≤400 | 66-720 | 30 | 6580×3821×4708 |
